Mendix Dynamic Case Management Architecture
Introduction

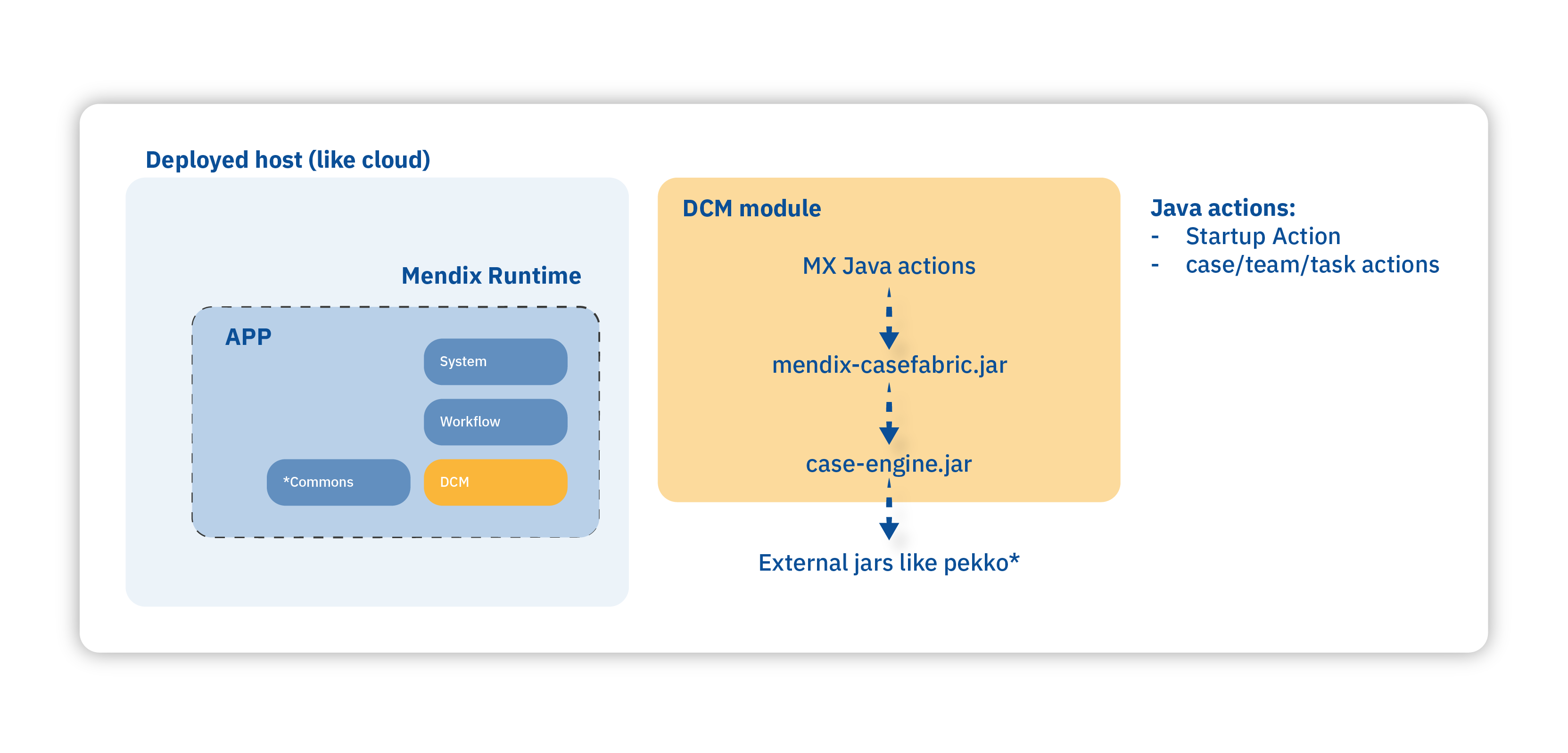

The Mendix Dynamic Case Management Add-On is a marketplace module embedded into the Mendix App. Basically a set of java actions with supporting jar files are added to the App and by running the startup action in a startup microflow, the case engine becomes operational.
The case engine as such is based on persistent actors using event sourcing. All supporting data is stored
in the configured mendix database prefixed by casemanagement$.
This guide contains an HTTP API reference - That is not available for the DCM module as the module is embedded right into the Mendix App and made available via Java Actions.
Note on security
When your app does not use any of the java actions, there is no functionality exposed to the outside world. The point as such is unrealistic as adding DCM has the intent of using it. The point is that depending on they way your application is built, DCM will be more or less securely available.
Project File Structure (and Runtime)
After adding DCM to your App project, the folder structure is extended with:
- $PROJECT_ROOT
- casesource = the models used by the studio pro plugin
- resources/casemanagement = deployed case models* to be bundled for runtime deployment
- deployment/model/resources/casemanagement = the runtime deployed case models*
- extensions/CaseManagementExtension = the Studio Pro plugin
- vendorlib = additional jar files required to run the case engine
- deployed case models bundle all details required to run into one xml (cmmn) file.
Deployment of the case model does 2 things. First add it to resources/casemanagement, secondly it is
added to deployment/model/resources/casemanagement. The first is actually the app bundle and when you hit run in studio pro, this will be copied to the deployment/model/resources/casemanagement folder. As we already copy it to the deployment location, you can start with the updated case model without restarting
Runtime
Case engine runtime
More detailed information on the case engine runtime
Case file structure and Entity structure compatibility
Entities are used as input and output for interaction with the case. More details on how to use that are found in Design Case Models
Entity and Case File integration
Entities are passed on into the case file structure when you start a case or when you complete a task. Next to that you are able to update the 'Context' of the case instance or task instance by explicitly updating.
At this moment, updates on Entities outside the case file are not automatically merged into the case file. You can use the "Update Case Context" java action order to get an Entity Change into the casefile. By mapping the outcome to the casefile in Process or Human tasks, the case file and entities will be updated.
Example: You have a casefile with a Person owning vehicles, now you add a new Car as a new Entity via a Microflow. This will not change the case file of a certain case instance. When you add the car via "Update Case Context" though, it will be available in the model and add the entity in Mendix as a Vehicle.
Entity and casefile transaction boundaries
For all actions that changing the state of the case instance, the DCM module makes use of CaseManagement_Execution_Queue Task Queue. When you execute the java action, it will do some premilary work but the actual change is handled by the UserAction triggered via the Task Queue. Issues in the execution are therefore not directly visible in the user action. This setup ensures that all Mendix microflow handling is completed (transactionally) as expected before the DCM module makes use of the data.
